We can see that the equation V ε Ir. Find the internal resistance of a cell.

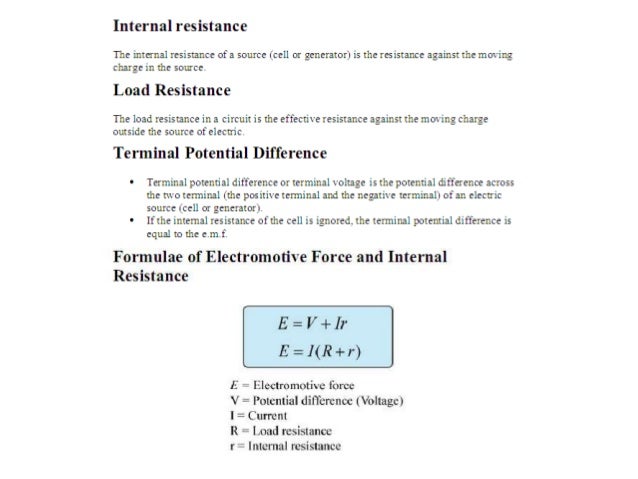

Ch7 Electricity Spm Fizik

The electromotive force is the terminal potential difference when the cell is in an open circuit no current flows.

Physics internal resistance formula. Resistance refers to the amount that an object impedes or resists in an electric current. This is called internal resistance r This internal resistance causes the charge circulating to dissipate some electrical energy from the power supply itself. Internal resistance is measured in Ohms.

E electromotive force in volts V. A Before the switch turned on the reading of the ammeter shows the emf. Internal resistance is measured in Ohms.

Internal Resistance in ohm R. Negative because the graph slopes down. V1 V0 - I1 r.

Electromotive force Volts I current A R Load resistance and r is the internal resistance of cell measured in ohms. An easier way to explain resistance is to consider an example of a person in a crowded market struggling to go from one shop to another. If the emf ℰ of a battery is known its internal resistance RINTERNAL can be found by measuring the current I LOAD that flows across a load resistance RLOAD with a known value.

The presence of internal resistance in a source of electromotive force means that the potential difference across the terminals of the electrical source terminal potential difference is always less. When electricity flows round a circuit the internal resistance of the cell itself resists the flow of current and so thermal heat energy is wasted in the cell itself. The internal resistance of the cell is the same value but without the negative sign.

This is why the cell becomes warm after a period of time. Emf of a cell in volts V. E I r R Where e EMF ie.

R Ohms law The emf is the sum of these potential differences giving the equation below. The emf can be measured by connecting a high-resistance voltmeter across the terminals of the cells as shown in Figure 2. Finding Internal Resistance Experimentally As V E - Ir if you plot a graph of terminal pd V against current I the gradient of the graph will be equal to the internal resistance of the cell.

Length of potentiometer wire lAB 4m Resistance of potentiometer wire R AB 8 ohm Applied emf E 2 V Internal resistance r 0 Balancing length by cell 217 cm 217 m. Electromotive force Volts I current A R Load resistance and r is the internal resistance of cell measured in ohms. The relationship between internal resistance r and emf e of cell s given by.

This equation can be written in different forms eg E IR r. The potential across the internal resistor is called lost volts. Since the internal and load resistances are in series we can use Kirchhoffs voltage law and Ohms law to obtain the following formula.

Current that pass through the resistor I VR I 252 125A E VIr 30 25125r. 30V b emf E 30V Potential difference across the resistor V 25V. External resistance in ohm We know that Emf is the work done by the cell to carry a unit charge through the closed circuit.

So V ε Ir where the letter V is the said to be the potential difference which is across the circuit and ε is the emf that is the letter I is the current flowing through the circuit r is internal resistance. Explain What is the Internal Resistance of a Cell and Derive its Equation. Lost volts emf terminal pd.

Internal resistance r of any real source is the resistance that charge moving through the material of the source encounters. From equation 1 the voltage drop V1 across the battery is given by. On rearranging the above equation we get.

I current in amperes A. To solve problems on internal resistance it should be remembered that such circuits involve using a series circuit with the. 2 When the switch is closed the resistance of the external circuit decreases because there are now two resistors connected in parallel.

Internal Resistance Formula In Physics. E IR Ir or e V Ir. Lost volts I.

R resistance of the load in the circuit in ohms W. When the switch is open a current I1 is drawn from the battery. The relationship between internal resistance r and emf e of cell s given by.

R internal resistance of the cell in ohms W. 11112019 Formula for Internal Resistance of a Cell ℰ. Current flowing through a conductor in Ampere r.

From the graph the emf. 07012020 When a cell is shunted by a resistance of 15 ohms the balancing length is reduced by 17 cm. 20012014 b the internal resistance of the cell.

01112019 This article discusses resistance along with the resistance formula and its derivation. Wednesday May 20 2020. E I r R Where e EMF ie.

Electric current refers to the flow of electrons. Potential difference across a cell in Volts I. This is the voltage lost in the cell due to internal resistance so from conservation of energy.

The internal resistance therefore causes loss of voltage or energy loss in a power supply. For example if the slope of the line is - 4 then the internal resistance is 4Omega. A cell can be thought of as a source.

So it is the sum of the work done to carry the.
